Brown harness and Pioneer AVH-X5700BHS

Post by rokrig » Sun Sep 13, 2015 7:51 pm

I'm installing this Pioneer headunit in my 2012 Sierra 3500 w/ Bose no navigation AND not the Denali. I'm confused about the use of the brown harness that has a white 'sub out', red 'center out' and yellow 'backup camera in'. I don't think my truck has a center channel. It has the back-up camera in the rear-view mirror and I believe the truck has a subwoofer in the center console.

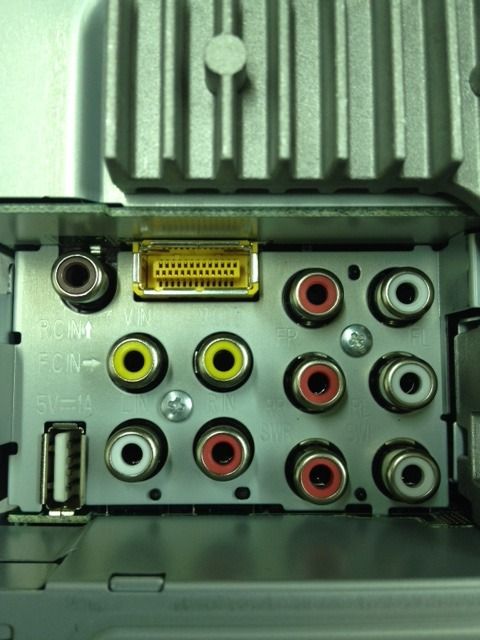

Question: Do I use this harness? If yes, where does each of the white, red and yellow RCA connectors go in the back of the AVH-X5700BHS? See picture of head-unit connections.


User avatar
Dara DeGrand
ADS Team
Posts: 6236
Joined: Mon Dec 02, 2013 1:34 pm

Re: Brown harness and Pioneer AVH-X5700BHS

Post by Dara DeGrand » Mon Sep 14, 2015 8:46 am

You'd connect the corresponding plugs if you've got those features. The subwoofer rca goes to the input labeled "SW", backup camera won't be connected, and because the pioneer doesn't have a center channel out, you could connect it to one of the RCA outputs (perhaps either the front left, or front right).
